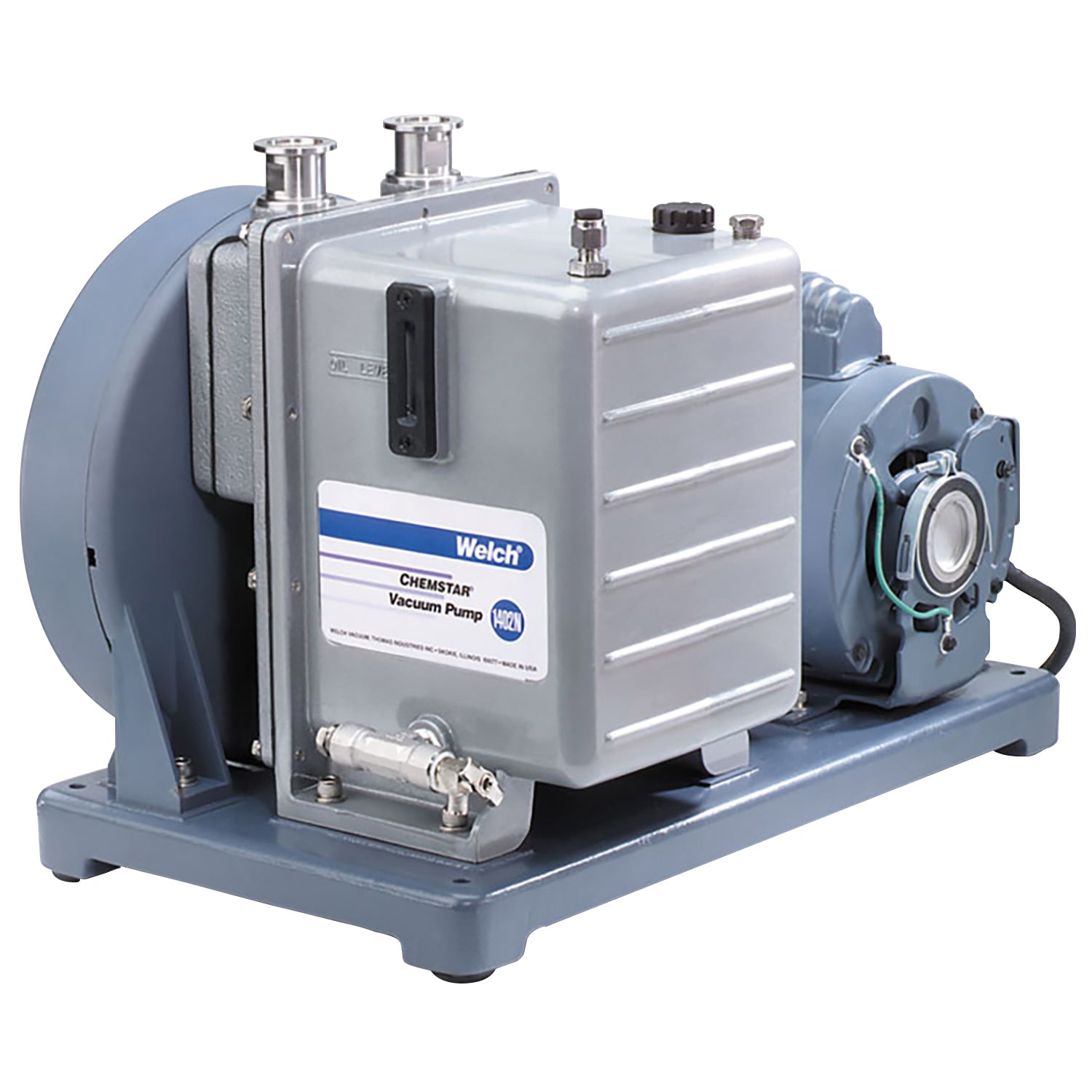

Welch 1402N-01 Chemstar Vacuum Pump
Welch 1402N-01 Chemstar Vacuum Pump - The Chemstar pumps have a Teflon lined oil case and additional chemically resistant parts, making the Chemstar pump the best choice for harsh process emissions where an oil sealed vacuum pump is necessary.
ChemStar high vacuum pump Model 1402N provides versatile effectiveness for corrosive drying operations throughout the laboratory. With ultimate vacuum <0.001 torr, and maximum 160 lpm flow, Model 1402N is the pump of choice for vacuum ovens (to 9 ft3), metal glove boxes, and freeze drying of corrosive samples.
| What's included | 3 liters Gold oil, 8995G-11 |
| Common accessory, not included | Exhaust filter 1417P-10 |
| Pumping Speed | 5.6 CFM (160 l/min) |
| Max. Vacuum | 0.0001 torr |
| Oil Capacity | 2.25 qt(2.1 l) |
| Tubing Needed | 13/16"(21 mm) |
| Exhaust / Intake Flange | NW 25 |
| Pump RPM | 525 |
| Dimensions LxWxH | 19.3"x14.1"x15.4" |
| Weight | 112 lb (51 kg) |
| Wiring | 115V, 60 hz |
Welch 1402N-01 Chemstar Vacuum Pump - The Chemstar pumps have a Teflon lined oil case and additional chemically resistant parts, making the Chemstar pump the best choice for harsh process emissions where an oil sealed vacuum pump is necessary.
ChemStar high vacuum pump Model 1402N provides versatile effectiveness for corrosive drying operations throughout the laboratory. With ultimate vacuum <0.001 torr, and maximum 160 lpm flow, Model 1402N is the pump of choice for vacuum ovens (to 9 ft3), metal glove boxes, and freeze drying of corrosive samples.
| What's included | 3 liters Gold oil, 8995G-11 |
| Common accessory, not included | Exhaust filter 1417P-10 |
| Pumping Speed | 5.6 CFM (160 l/min) |
| Max. Vacuum | 0.0001 torr |
| Oil Capacity | 2.25 qt(2.1 l) |
| Tubing Needed | 13/16"(21 mm) |
| Exhaust / Intake Flange | NW 25 |
| Pump RPM | 525 |
| Dimensions LxWxH | 19.3"x14.1"x15.4" |
| Weight | 112 lb (51 kg) |
| Wiring | 115V, 60 hz |
Welch 1393G ISO Adapter NW25 for 1405, 1402, 1376- Welch 1416C-01
- Welch 1416D
- Welch Exhaust Filter 1417P-10
- Welch 1417A DIRECTIONAL EXHAUST FILTER
- Welch 1401D-01
- Welch 1417P-7 Exhaust Filter
- Welch 1402K-09 Chemstar MINOR REPAIR KIT, for 1402N Vacuum Pump
- Welch 1402K-10 Chemstar MAJOR REPAIR KIT, for 1402N Vacuum Pump
