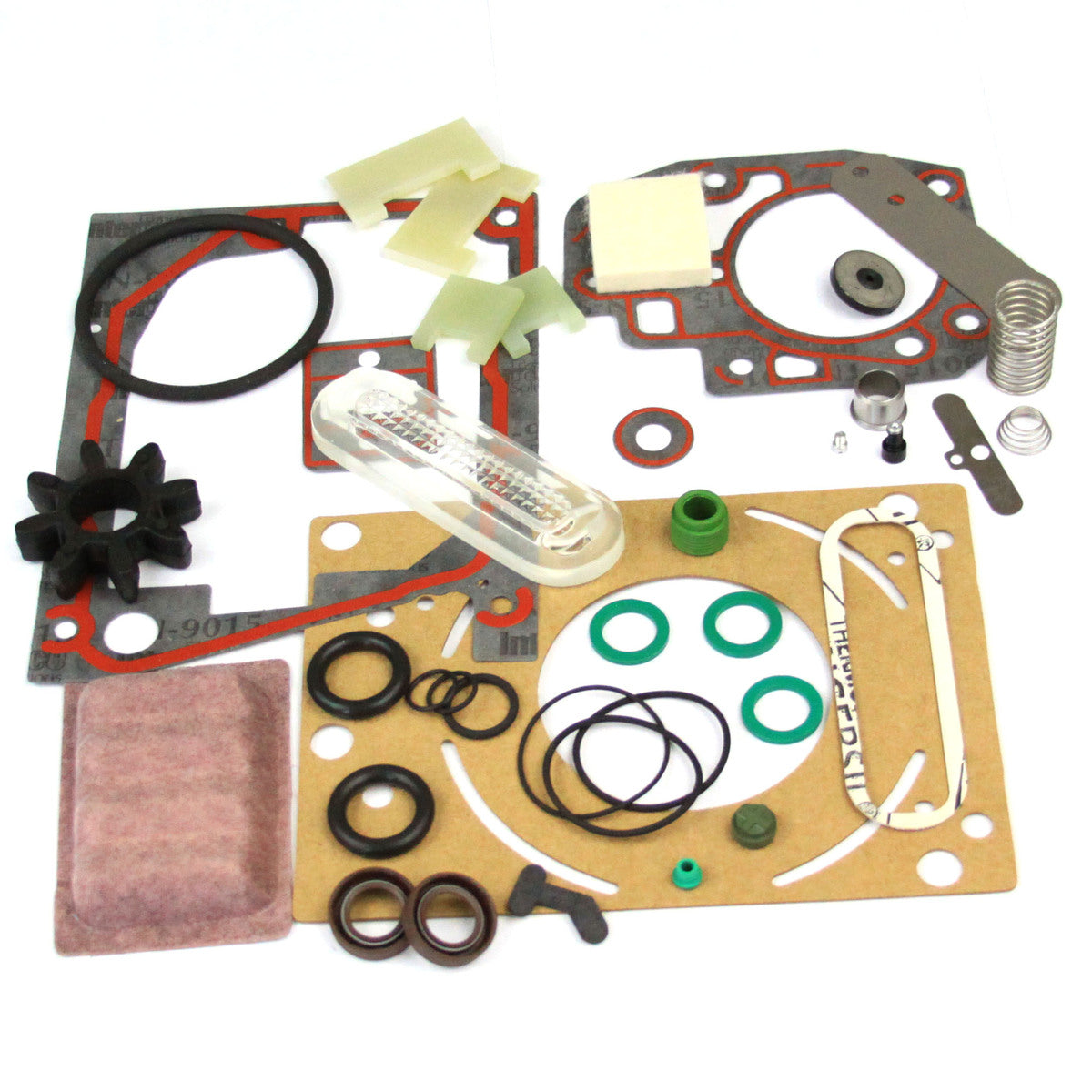

Major Repair Kit with GX Vanes 19131D16KIT
Used on Leybold Trivac D16BCS
Major Repair Kit includes; coupling element, O-rings, shaft seal, Vanes, and Valves and other components for a major overhaul
General product classifications
| Brand | Leybold |
| Family | Trivac |
| Pump models | D16BCS |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |

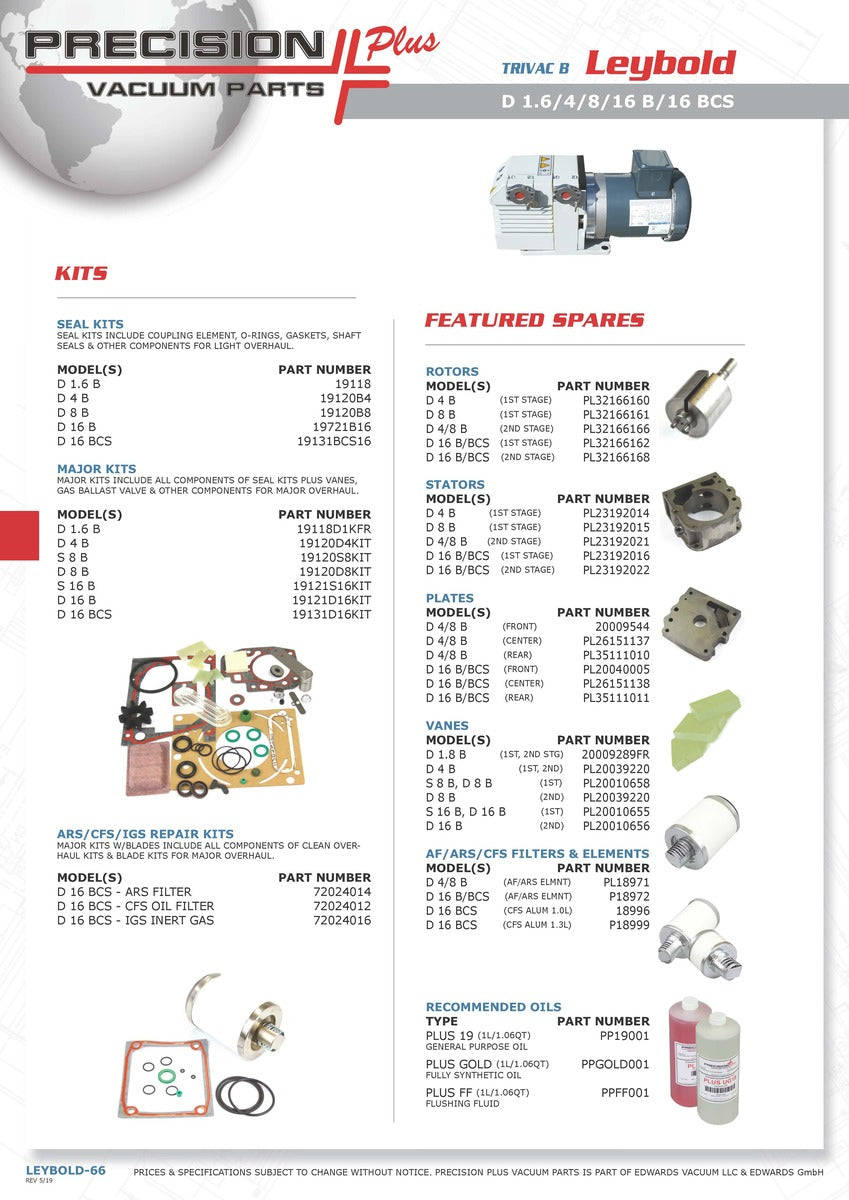

| Manual page | LEYBOLD-66 |
| Part number alternatives | 19131BCS16 |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| PL34861028 | Non - Return Valve, Leybold, Trivac, Part# PL34861028 | 1 |
| PL20010656 | Leybold Vane, 2nd Stage - GX, Part# PL20010656 | 2 |
| PL20010655 | Leybold Vane - GX, Part# PL20010655 | 2 |
| PL20009057 | Oil Nozzle- Leybold, Trivac, Part# PL20009057 | 1 |
| PL20009094 | Coupling Insert, Leybold, Trivac, Part# PL20009094 | 1 |
| 20009012 | Leybold Gasket, Part# 20009012 | 1 |
| P23970108 | O-ring, 12 x 1.5 mm - Viton, Part# P23970108 | 2 |
| P23955165 | Leybold Gasket, Viton, Part# P23955165 | 3 |
| PL20009235 | Shaft Seal, Leybold, Trivac, D16BCS, D25BCS, Part# PL20009235 | 2 |
| 20009015 | Plate Valve, Deflector-Leybold Trivac, Part# 20009015 | 1 |
| PL20010736 | Leybold Module Gasket, Mylar, Part# PL20010736 | 1 |
| PL40175023 | Pressure Relief Valve, Leybold, Trivac, Part# PL40175023 | 1 |
| PL40175017 | Valve Plate, Leybold, Trivac, D16B, D16BCS, Part# PL40175017 | 1 |
| PL40159004 | Valve Disc, Leybold, Trivac, Part# PL40159004 | 1 |
| PL39350015 | Silencing Nozzle, Leybold, Trivac, S8B, D16B, D25B, S16B, S25B, S40B, S65B, D16BCS, D25BCS, Part# PL39350015 | 1 |
| PL39026012 | Leybold Demister Filter, Part# PL39026012 | 1 |
| PL35001179 | Leybold Sight Glass Part# PL35001179 | 1 |
| PL34861029 | Seal, Leybold, Trivac, Part# PL34861029 | 1 |
| PL23973146 | Seal, Float, Leybold, Trivac, Part# PL23973146 | 1 |
| 23973057 | Sight Glass Gasket, Leybold, Trivac, Part# 23973057 | 1 |
| 23973052 | Oil Gasket, Leybold, Trivac, D16BCS, D25BCS, Part# 23973052 | 1 |
| PL23970509 | O - ring, 70 x 5 mm - Viton, Part# PL23970509 | 1 |
| 23973043 | Leybold Gasket, Part# 23973043 | 1 |
| 23973044 | Gasket, Flat, Leybold, Trivac, Part# 23973044 | 1 |
| PL23970506 | O-ring, 27.94 x 5.33 mm - Viton, Part# PL23970506 | 2 |
| PL23970412 | O-Ring,Viton,6 X 2 MM Part# PL23970412 | 1 |
| 23970409 | O-ring, 60 x 2 mm - Viton, Part# 23970409 | 1 |
| PL23970261 | O-ring, 52 x 3 mm - Viton, Part# PL23970261 | 2 |
| PL23970147 | O-ring, 16 x 2.5 mm - Viton, Part# PL23970147 | 1 |
| PL23970006 | O-ring, 55 x 2 mm - Viton, Part# PL23970006 | 1 |
| PL22161040 | Stainless Steel Spring, Leybold, Trivac, Part# PL22161040 | 1 |
| PL23192026 | Leybold Shaft Sleeve Bushing, Part# PL23192026 | 1 |
| PL23970304 | O-ring, 45 x 3 mm - Viton, Part# PL23970304 | 2 |
| PL23953004 | Leybold Shaft Seal, FKM, Part# PL23953004 | 2 |
| PL22161031 | Split Spring, Leybold, Trivac, D4B, D8B, Part# PL22161031 | 1 |
| PL20039148 | Felt Gasket-Leybold Trivac, Part# PL20039148 | 1 |
| PL20010738 | Coupling Housing Gasket, Leybold, Trivac, Part# PL20010738 | 1 |
