Major Rebuild Kit with Vanes 3237

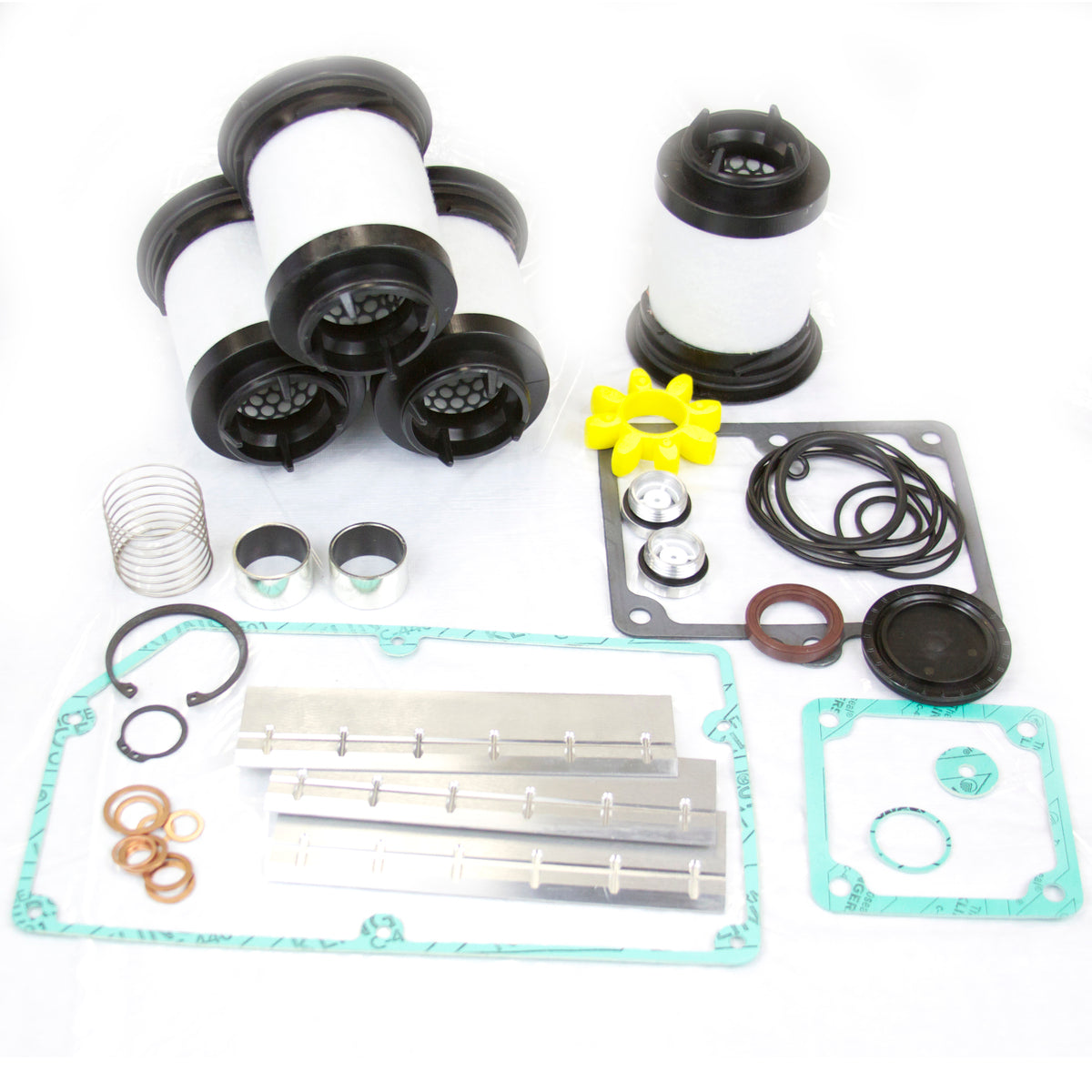

Major Rebuild Kit with Vanes includes; exhaust filters & access panel O-rings & gaskets, O-rings, Vanes, bearings, couplings, sight glass & other components for major overhaul.
General product classifications
| Brand | Rietschle |
| Family | V-VC |
| Pump models | VC100 |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
| Manual page | RIETSCHLE-86 |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 716292 | Compression Spring, Steel - Rietschle V - VC, Part# 716292 | 1 |
| 725013 | Sight Glass Assembly, Rietschle, V-VCA-VCE, V-VC, Part# 725013 | 2 |
| 731468 | Rietschle Exhaust filter for V VC pump, Part# 731468 | 4 |
| 82018 | O-ring, 53.34 x 5.33 mm - Viton, Part# 82018 | 1 |
| 212967 | Plate Valve Assembly with Viton O-ring, Rietschle, V-VC, Part# 212967 | 1 |
| 300121 | Ring Gasket, Rietschle, V-VCA-VCE, V-VC, Part# 300121 | 1 |
| 704014 | Ring Gasket, Copper, Rietschle, V-VC, Part# 704014 | 1 |
| 604725 | Shaft Seal, Viton - 30 x 42 x 7mm, Rietschle, V-VC, Part# 604725 | 1 |
| 527986 | Rectangular Gasket-Rietschle V-VC, Part# 527986 | 1 |
| 527832 | Rectangular Gasket, Rietschle, V-VC, VC100, VC150, Part# 527832 | 1 |
| 527601 | Inlet Gasket, Rietschle, V-VC, VC100, VC150, Part# 527601 | 1 |
| 320231 | O-ring, 53.57 x 3 mm - Viton, Part# 320231 | 1 |
| 320229 | O-ring, 29.87 x 1.5 mm - Buna, Part# 320229 | 1 |
| 704020 | ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704020 | 4 |
| 704021 | ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704021 | 1 |
| 704038 | Ring Gasket, Rietschle, V-VC, Part# 704038 | 1 |
| 704044 | Oil Cap Sealing ring Gasket-Rietschle V-VCA-VCE, V-VC, Part# 704044 | 1 |
| 704532 | ring Gasket, Copper, Rietschle, V-VC, Part# 704532 | 4 |
| 320379 | O-ring, 157 x 3 mm - Viton, Part# 320379 | 2 |
| 622009 | Retaining ring, External, 23.2 ID x 1.18 mm, Rietschle, V-VC, Part# 622009 | 1 |
| 622730 | Retaining ring, Internal, Steel 2.35 ID x 0.078, Rietschle, V-VC, Part# 622730 | 1 |
| 528129 | Vane - Aluminium Alloy, Rietschle, V - VC, VC100, VC150, Part# 528129 | 3 |
| 600080 | Shaft Sleeve, Steel- Rietschle, V-VC, Part# 600080 | 2 |
| PL70100330 | Spider Coupling, Trasco 28, Leybold, V-VC, Part# PL70100330 | 1 |
