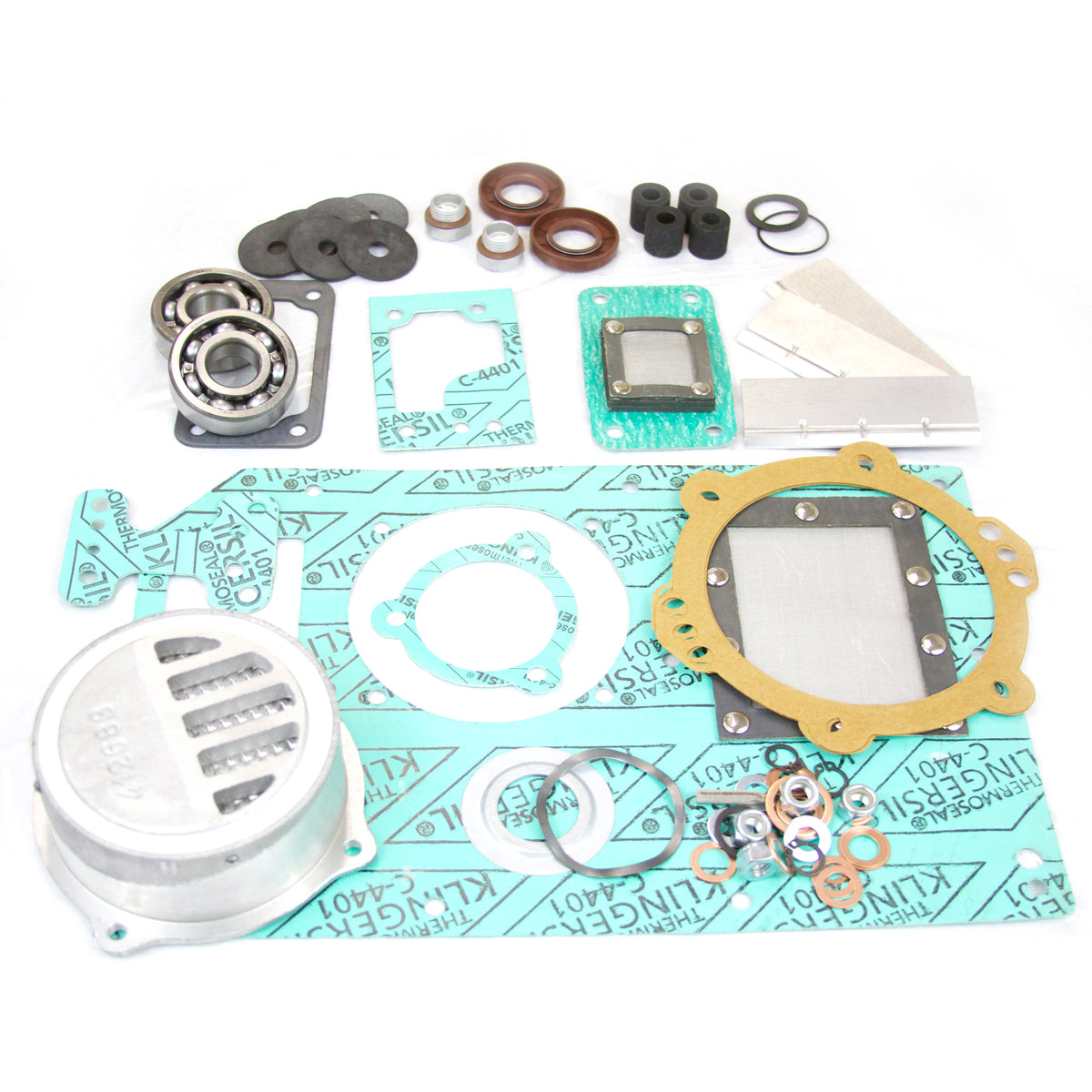

Major Rebuild Kit with Vanes 3143
Used on Rietschle V-VCA-VCE VCA40, VCE40
Major Rebuild Kit with Vanes includes; exhaust filters & access panel O-rings & gaskets, O-rings, Vanes, bearings, couplings, sight glass & other components for major overhaul.
General product classifications
| Brand | Rietschle |
| Family | V-VCA-VCE |
| Pump models | VCA40 VCE40 |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
| Manual page | RIETSCHLE-85 |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 704563 | Ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704563 | 1 |
| 704044 | Oil Cap Sealing ring Gasket-Rietschle V-VCA-VCE, V-VC, Part# 704044 | 1 |
| 704021 | ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704021 | 1 |
| 704020 | ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704020 | 7 |
| 704019 | Ring Gasket, Copper, Rietschle, V-VCA-VCE, Part# 704019 | 1 |
| 420044 | Ring Gasket, Copper, Rietschle, V-VCA-VCE, Part# 420044 | 1 |
| 622300 | Nilos ring, Steel, 2.04" OD x 1.18" ID x 0.012"Th, Rietschle, V-VCA-VCE, Part# 622300 | 1 |
| 502564 | Round Gasket, Rietschle, V-VCA-VCE, Part# 502564 | 1 |
| 510581 | Ring Gasket, Rietschle, Part# 510581 | 3 |
| 512971 | Rectangular Gasket, Rietschle, V-VCA-VCE, Part# 512971 | 1 |
| 604605 | Shaft Seal, Viton - 20 x 40 x 7 mm, Rietschle, V-VCA-VCE, Part# 604605 | 2 |
| 526372 | Gasket, H-shaped, Rietschle, V-VCA-VCE, Part# 526372 | 1 |
| 520615 | Gasket Kit, Paper-Rietschle V-VCA-VCE, Part# 520615 | 1 |
| 520573 | Rectangular Gasket, Rietschle, V-VCA-VCE, Part# 520573 | 1 |
| 320228 | O-ring, 7.65 x 3 mm - Buna, Part# 320228 | 1 |
| 320229 | O-ring, 29.87 x 1.5 mm - Buna, Part# 320229 | 1 |
| 316708 | Mesh Gasket-Rietschle V-VCA-VCE, Part# 316708 | 1 |
| 300121 | Ring Gasket, Rietschle, V-VCA-VCE, V-VC, Part# 300121 | 1 |
| 300120 | Inlet Filter Gasket, Rietschle, V-VCA-VCE, VCA40, VCE40, Part# 300120 | 1 |
| 731399 | Rietschle Exhaust Filter, Part# 731399 | 4 |
| 725013 | Sight Glass Assembly, Rietschle, V-VCA-VCE, V-VC, Part# 725013 | 2 |
| 622051 | ring, Retaining, External, 35.2IDx1.75mm, Rietschle, V-VCA-VCE, Part# 622051 | 1 |
| 622007 | Retaining Ring External, 16.5 ID x 1.2 0 mm, Rietschle, Part# 622007 | 1 |
| 622003 | Retaining ring, External, 9.3 ID x 1.00 mm, Rietschle, Part# 622003 | 4 |
| 515839 | Inlet Screen, Stainless Steel, Rietschle V-VCA-VCE, V-VC, Part# 515839 | 1 |
| 520913 | Coupling, Buna, Rietschle, V-VCA-VCE, V-VC, Part# 520913 | 4 |
| 510756 | Distance ring, Rietschle, Part# 510756 | 4 |
| 526676 | Vane Aluminium Alloy, Rietschle, V - VCA - VCE, VCA40, VCE40, Part# 526676 | 3 |
| 620007 | Flat Washer, Zinc, Rietschle, V-VCA-VCE, V-VC, Part# 620007 | 4 |
| 512551 | Oil Level Plate-Rietschle V-VCA-VCE, V-VC, Part# 512551 | 1 |
| 618005 | Lock Nut, Hex, Nylon, Rietschle, V-VCA-VCE, V-VC, Part# 618005 | 4 |
| 602059 | Ball Bearing, Single Row / Deep Groove, 6304, Rietschle, V-VCA-VCE, Part# 602059 | 2 |
