2.12" OD Conflat Manual Right Angle Valve (MRV-CF212-VE)
MRV-CF212-VE
2-1/8" OD Conflat Manual Right Angle Valve
Manual Bellows Sealed SS Angle Valve
Vacuum Essential
• High Vacuum Valve
• HV Elastomer Sealed Poppet Valve
• Viton Seals (Fluorocarbon, FKM) Seals

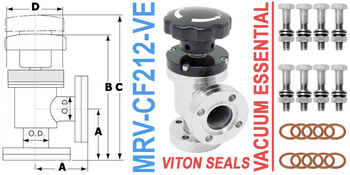

• A: 2.05"
• B: 5.14"
• C: 5.87"
• D: 2.24"
• Leak rate across seat: 1x10-9 mbar L/s
• Pressure Minimum: 1x10-9 Torr
• Pressure Maximum: Atmospheric pressure
Former PN: MRV-212V-VE
2.125" OD Conflat Flange (CF):
• Rotatable Flanges
• 1.00" Tube OD
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter
2.125" OD Conflat Flange (CFF) Equivalents:
CF212, DN25CF, NW25CF, 212CF, 2-1/8" Del Seal
MRV-CF212 MRV-1002-CF
2-1/8" OD Conflat Manual Right Angle Valve
Manual Bellows Sealed SS Angle Valve
Vacuum Essential
• High Vacuum Valve
• HV Elastomer Sealed Poppet Valve
• Viton Seals (Fluorocarbon, FKM) Seals
• A: 2.05"
• B: 5.14"
• C: 5.87"
• D: 2.24"
• Leak rate across seat: 1x10-9 mbar L/s
• Pressure Minimum: 1x10-9 Torr
• Pressure Maximum: Atmospheric pressure
Former PN: MRV-212V-VE
2.125" OD Conflat Flange (CF):
• Rotatable Flanges
• 1.00" Tube OD
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter
2.125" OD Conflat Flange (CFF) Equivalents:
CF212, DN25CF, NW25CF, 212CF, 2-1/8" Del Seal
MRV-CF212 MRV-1002-CF
MRV-CF212-VE
2-1/8" OD Conflat Manual Right Angle Valve
Manual Bellows Sealed SS Angle Valve
Vacuum Essential
• High Vacuum Valve
• HV Elastomer Sealed Poppet Valve
• Viton Seals (Fluorocarbon, FKM) Seals
• A: 2.05"
• B: 5.14"
• C: 5.87"
• D: 2.24"
• Leak rate across seat: 1x10-9 mbar L/s
• Pressure Minimum: 1x10-9 Torr
• Pressure Maximum: Atmospheric pressure
Former PN: MRV-212V-VE
2.125" OD Conflat Flange (CF):
• Rotatable Flanges
• 1.00" Tube OD
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter
2.125" OD Conflat Flange (CFF) Equivalents:
CF212, DN25CF, NW25CF, 212CF, 2-1/8" Del Seal
MRV-CF212 MRV-1002-CF
2-1/8" OD Conflat Manual Right Angle Valve
Manual Bellows Sealed SS Angle Valve
Vacuum Essential
• High Vacuum Valve
• HV Elastomer Sealed Poppet Valve
• Viton Seals (Fluorocarbon, FKM) Seals
• A: 2.05"
• B: 5.14"
• C: 5.87"
• D: 2.24"
• Leak rate across seat: 1x10-9 mbar L/s
• Pressure Minimum: 1x10-9 Torr
• Pressure Maximum: Atmospheric pressure
Former PN: MRV-212V-VE
2.125" OD Conflat Flange (CF):
• Rotatable Flanges
• 1.00" Tube OD
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter
2.125" OD Conflat Flange (CFF) Equivalents:
CF212, DN25CF, NW25CF, 212CF, 2-1/8" Del Seal
MRV-CF212 MRV-1002-CF
