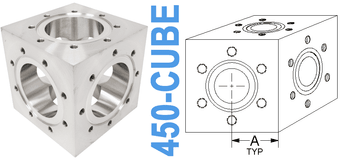

4.50" OD Conflat Cube (450-CUBE)
450-CUBE
DN63CF 6 WAY CONFLAT UHV CUBE
4-1/2" OD CF Conflat Flange Series
• Weight: 14 lbs
• A: 2.23"
• Porting is 2-1/2"
• Former PN: 450-CU
6-Way Cube for Ultra High Vacuum
UHV Applications
4-1/2" OD Conflat Flange (CF):
• 8 Tapped Holes
• 5/16-24 Thread
• Uses 450-BT OR 450-BT-12 Tapped Bolt Kit
4.50" OD Conflat Flange (CFF) Equivalents
450CF, DN63CF, NW63CF, CF63, CF64
CF450, Del Seal
CF Conflat Flange Series Cubes
Six Way UHV Cubes
• One Piece Machined, No Welds
• Tapped Holes, US Threads
• 304L Stainless, OD Polish
UHV, Vacuum Rated:
• 1x10-13 Torr
Helium Leak Tested To:
• <1x10-9 cc/second
Temperature Range:
• -200°C up to 450°C
