3.38" Conflat Flange Pneumatic Inline Valve (PIV-CF338-VE)
3.38" Conflat Flange Pneumatic Inline Valve (PIV-CF338-VE)

Accepted at Checkout

Last 5 Products Reviewed

3.38" Conflat Flange Pneumatic Inline Valve (PIV-CF338-VE)

Price Each

Quantity

Price:

$ 767.05

 $ 1,334.00 		Quantity:
Add to Cart

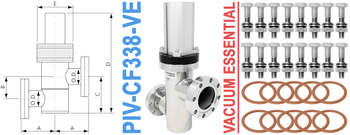

PIV-CF338-VE
3-3/8" OD Conflat Inline Vacuum Valve
Pneumatic Bellows Sealed SS Inline Valve
Air Open, Spring Close
• High Vacuum Valve
• Offset In-Line Poppet Valve
• Viton (FKM) Seals
• A: 3.47"
• B: 2.62"
• C: 4.12"
• D: 11.05"
• E: 3.48"
Vacuum Essential
3.38" OD Conflat Flange (CF):
• Rotatable Flanges
• 2.00" Tube OD
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

3-3/8" OD Conflat Flange (CF) Equivalents:
• 338CF, CF338, DN50CF, NW50CF, 3.375" CFF

PIV-CF338-VE
3-3/8" OD Conflat Inline Vacuum Valve
Pneumatic Bellows Sealed SS Inline Valve
Air Open, Spring Close
• High Vacuum Valve
• Offset In-Line Poppet Valve
• Viton (FKM) Seals
• A: 3.47"
• B: 2.62"
• C: 4.12"
• D: 11.05"
• E: 3.48"
Vacuum Essential
3.38" OD Conflat Flange (CF):
• Rotatable Flanges
• 2.00" Tube OD
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

3-3/8" OD Conflat Flange (CF) Equivalents:
• 338CF, CF338, DN50CF, NW50CF, 3.375" CFF
