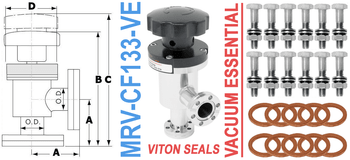

1.33" OD Conflat Manual Right Angle Valve (MRV-CF133-VE)
MRV-CF133-VE
1.33" OD Conflat Manual Right Angle Valve
Manual Bellows Sealed SS Angle Valve
Vacuum Essential
• High Vacuum Valve
• HV Elastomer Sealed Poppet Valve
• Viton Seals (Fluorocarbon, FKM) Seals
• A: 2.15"
• B: 5.48"
• C: 6.34"
• D: 2.39"
• Leak rate across seat: 1x10-9 mbar L/s
• Pressure Minimum: 1x10-9 Torr
• Pressure Maximum: Atmospheric pressure
Former PN: MRV-133V-VE
1.33" OD CF Conflat Flange
• Rotatable Flanges
• 0.75" Tube OD
• 6 Clearance (Thru) Holes
• 0.172" Bolt Hole Diameter
1.33" OD CF Conflat Flange Equivalents
• CF133, DN16CF, NW16CF, CF16, 133CF,
1-1/3" Mini Conflat, CFF, Del Seal
MRV-CF133 MRV-0752-CF
