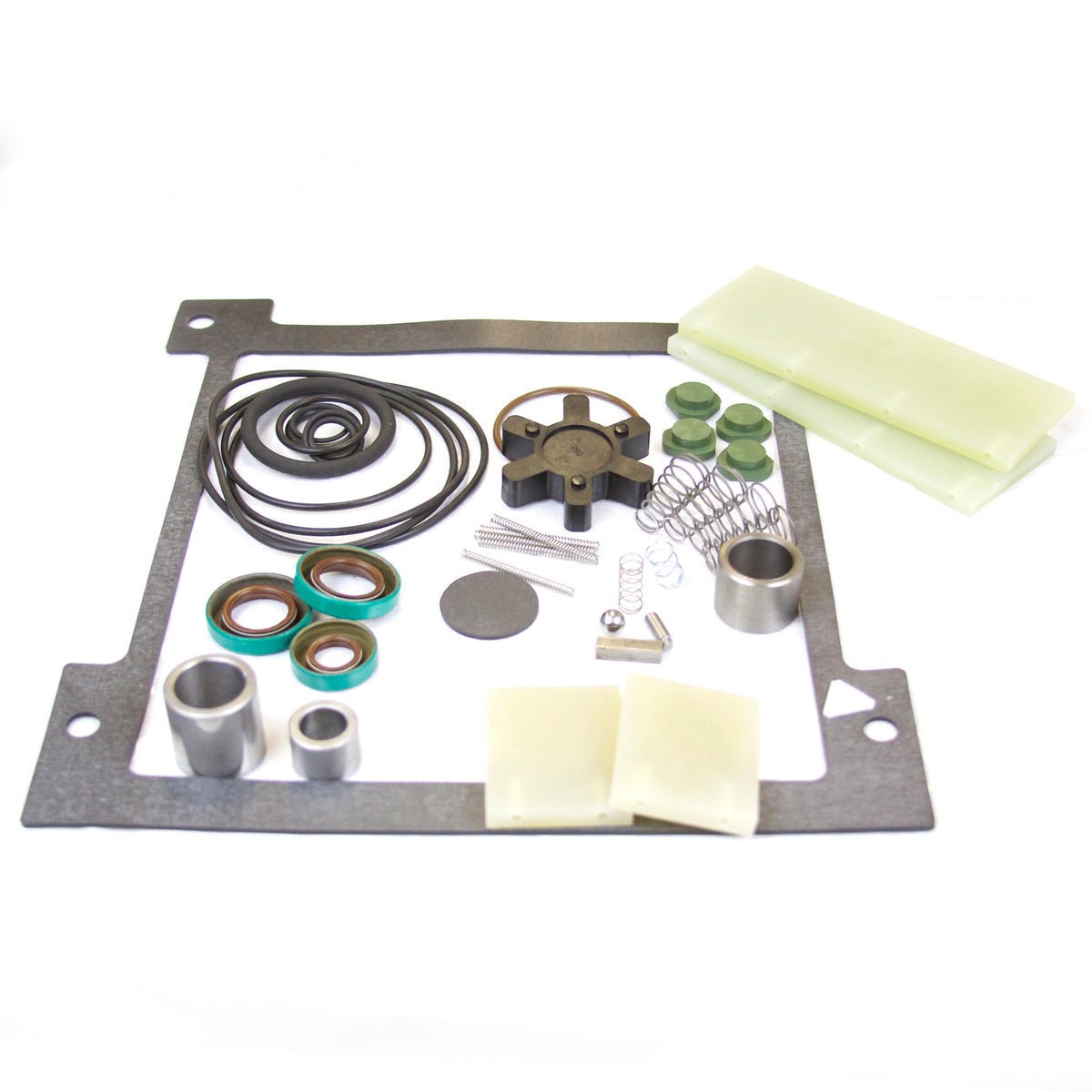

Major Repair Kit with Vanes 429320001KIT
Used on Stokes MicroVane 009
Major Kit with Vanes includes; O-rings, gaskets, Valves, springs, coupling elements, Vanes, springs & bushings for major overhaul.
General product classifications
| Brand | Stokes |
| Family | MicroVane |
| Pump models | 009 |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
| Manual page | STOKES-94 |
| Part number alternatives | 23S-009-V |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 427986004G | Vane, 2nd Stage - GX, Stokes, Microvane, Part# 427986004G | 2 |
| 427985004G | Vane, 1st Stage - GX, Stokes, Microvane, Part# 427985004G | 2 |
| 427-647-001 | Pin, Gerotor Drive | 1 |
| 085-040-564 | Spider Coupling | 1 |
| 085-040-406 | Compression Spring | 1 |
| 085-039-700 | O-Ring .644 Id X .818 Od | 1 |
| 085-040-204 | O-Ring 1 1/16" ID X .103" Section | 1 |
| 085-039-642 | O-Ring 1 11/16" ID X .103" Section | 1 |
| 085-039-629 | Oil Seal, 0.375" ID x 1" OD X 1/4" | 1 |
| 085-039-280 | Compression Spring | 5 |
| 085-039-187 | Oil Seal | 2 |
| 085-027-613 | O-Ring1/2" ID X .103 Section | 1 |
| 085-023-256 | O-Ring 1 11/64" ID X .116" Section | 1 |
| 429345001 | Exhaust Valve, Stokes, Microvane, Part# 429345001 | 3 |
| 429-314-001 | Exhaust Valve Spring | 3 |
| 429-009-001 | Gas Ballast Gasket | 1 |
| 428-121-002 | Reservoir Gasket | 1 |
| 427-716-001 | Gas Ballast Valve Disc | 1 |
| 085-039-333 | O-Ring 1 1/8" ID | 1 |
| 085-037-672 | O-Ring .644" ID X .087" Section | 2 |
| 429-937-002 | Valve Disc | 1 |
| 429-004-001 | Orifice Gas Ballast | 1 |
| 428-825-001 | Rotor Key | 1 |
| 428-810-001 | Bearing End | 1 |
| 428-809-001 | Bearing Front | 1 |
| 428-219-001 | Bearing | 1 |
