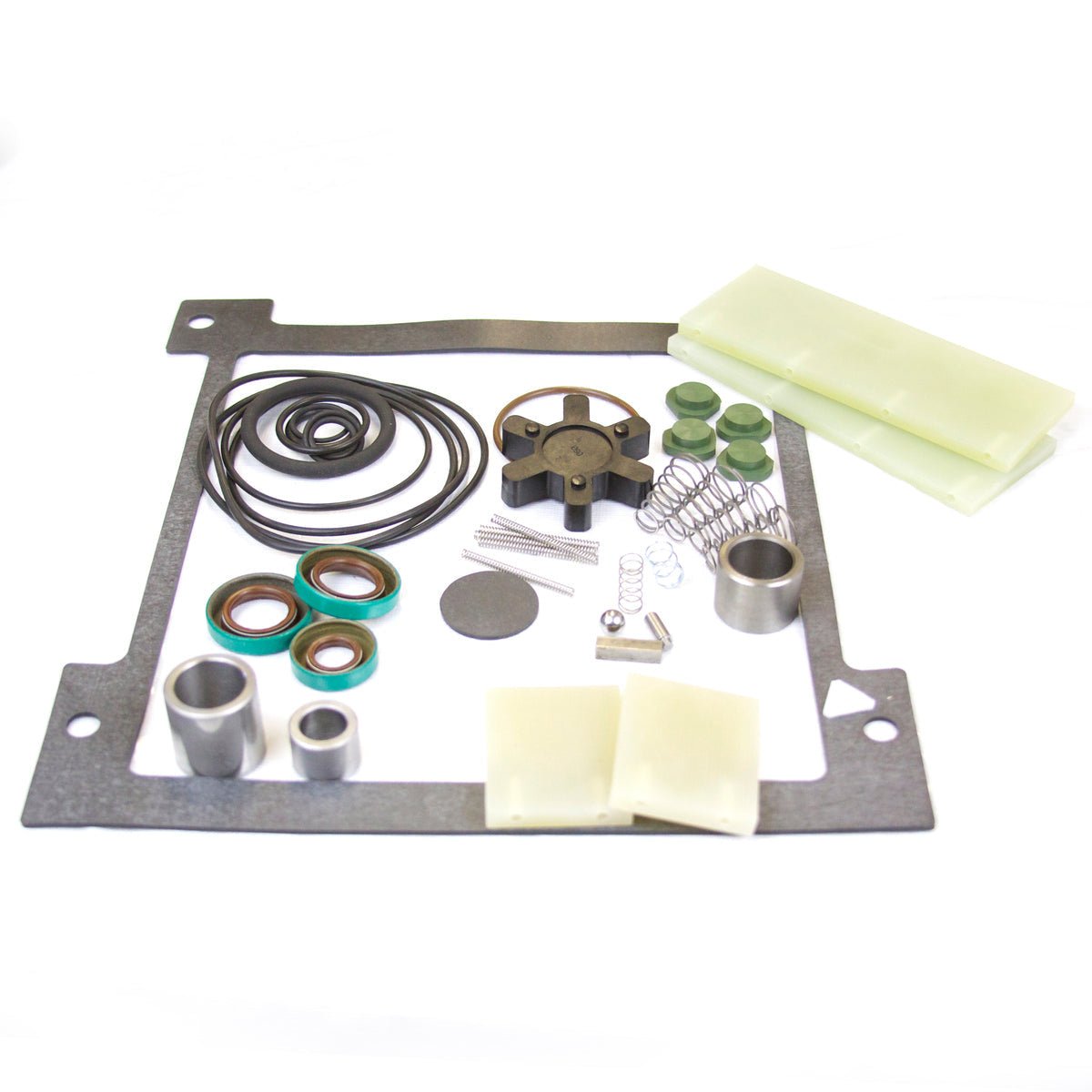

Major Repair Kit with Vanes 424091001KIT
Used on Stokes MicroVane 005
Major Kit with Vanes includes; O-rings, gaskets, Valves, springs, coupling elements, Vanes, springs & bushings for major overhaul.
General product classifications
| Brand | Stokes |
| Family | MicroVane |
| Pump models | 005 |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
| Manual page | STOKES-94 |
| Part number alternatives | 23S-005-2-V |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 429-004-003 | Orifice | 2 |
| 085-040-564 | Spider Coupling | 1 |
| 429-473-002 | Guide Pin Spring | 1 |
| 085-039-642 | O-Ring 1 11/16" ID X .103" Section | 1 |
| 085-039-280 | Compression Spring | 3 |
| 429474002G | Vane, Oil Pump - GX, Stokes, Microvane, Part# 429474002G | 1 |
| 429472005G | Vane, 2nd Stage - GX, Stokes, Microvane, Part# 429472005G | 2 |
| 429-488-002 | Rotor Key | 1 |
| 085-039-333 | O-Ring 1 1/8" ID | 1 |
| 085-040-406 | Compression Spring | 1 |
| 427-716-001 | Gas Ballast Valve Disc | 1 |
| 429471006G | Vane, 1st Stage - GX, Stokes, Microvane, Part# 429471006G | 2 |
| 429345001 | Exhaust Valve, Stokes, Microvane, Part# 429345001 | 2 |
| 429-487-003 | Reservoir Gasket | 1 |
| 429-937-002 | Valve Disc | 1 |
| 430-184-003 | Leaf Spring | 1 |
| 085-007-754 | Woodruff Key | 1 |
| 085-023-256 | O-Ring 1 11/64" ID X .116" Section | 1 |
| 085-038-218 | Oil Seal | 3 |
| 430-322-001 | Exhaust Valve Spring | 2 |
| 085-037-672 | O-Ring .644" ID X .087" Section | 2 |
