Product Gallery Major Repair Kit with Cast Iron Vanes, 1402PI

Accepted at Checkout

Last 5 Products Reviewed

Major Repair Kit with Cast Iron Vanes, 1402PI

Price Each

Quantity

Price:

$ 313.41

 $ 438.10
Quantity:
Add to Cart

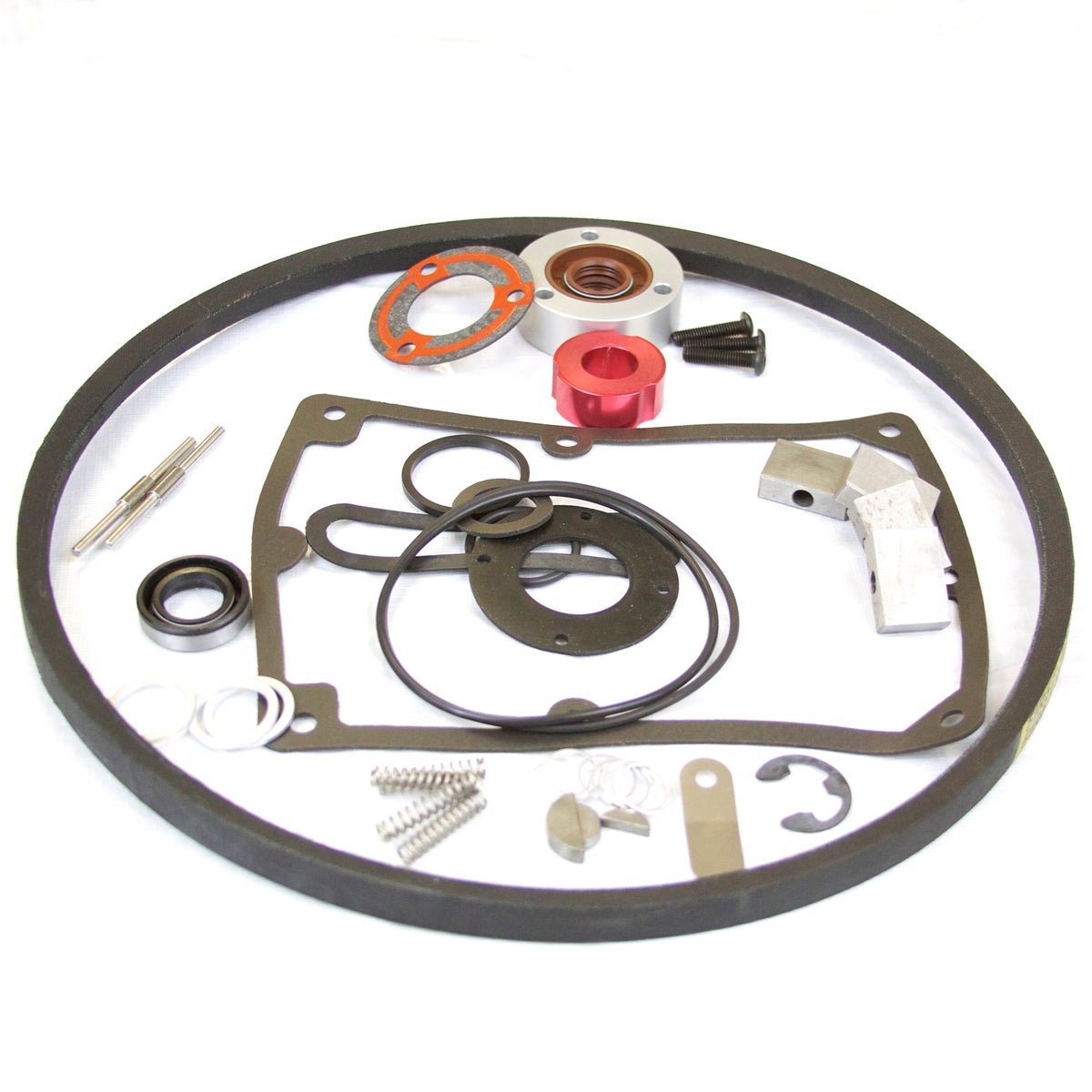

Major Repair Kit includes; all components of Minor Repair Kit (gaskets, washers & Viton shaft seals, v-belts, exhaust Valves & springs), plus Vanes (cast iron or phenolic) for major overhaul. Used on Pump Models 1402

General product classifications

Brand Welch
Family DuoSeal
Pump models 1402
Category Repair Kits
Subcategory Primary Kit
Country of origin US
Manual page WELCH-104
Part number alternatives 23W-1402-VV

PART NUMBER DESCRIPTION QUANTITY
410234 Gasket 1
410403 Case Gasket, Foam Rubber 1
410508 Thrust Washer 1
410578 Shaft Seal, Metal Case 1
410613 Woodruff Key, Cut 2
410624 Woodruff Key, Cut 2
410696 Spring Holder 3
410713 V-Belt 1
410959 Vane, 1st Stage - Cast Iron 2
410992 Pressure Relief Valve 1
411266 Washer, Tension 2
411267 Washer, Rubber 2
411304 Spring 6
411401D-01 Shaft Seal Kit - 0.750" 1
411487 Vane, 2nd Stage - Cast Iron 2
411766 Disk Washer 3
412153S Pressure Relief Valve 1
412154S Pressure Relief Valve 1
412158 Valve Spring 2
412291 Gasket 1
4401200 Steel Ball 1

Major Repair Kit includes; all components of Minor Repair Kit (gaskets, washers & Viton shaft seals, v-belts, exhaust Valves & springs), plus Vanes (cast iron or phenolic) for major overhaul. Used on Pump Models 1402

General product classifications

Brand Welch
Family DuoSeal
Pump models 1402
Category Repair Kits
Subcategory Primary Kit
Country of origin US
Manual page WELCH-104
Part number alternatives 23W-1402-VV

PART NUMBER DESCRIPTION QUANTITY
410234 Gasket 1
410403 Case Gasket, Foam Rubber 1
410508 Thrust Washer 1
410578 Shaft Seal, Metal Case 1
410613 Woodruff Key, Cut 2
410624 Woodruff Key, Cut 2
410696 Spring Holder 3
410713 V-Belt 1
410959 Vane, 1st Stage - Cast Iron 2
410992 Pressure Relief Valve 1
411266 Washer, Tension 2
411267 Washer, Rubber 2
411304 Spring 6
411401D-01 Shaft Seal Kit - 0.750" 1
411487 Vane, 2nd Stage - Cast Iron 2
411766 Disk Washer 3
412153S Pressure Relief Valve 1
412154S Pressure Relief Valve 1
412158 Valve Spring 2
412291 Gasket 1
4401200 Steel Ball 1
