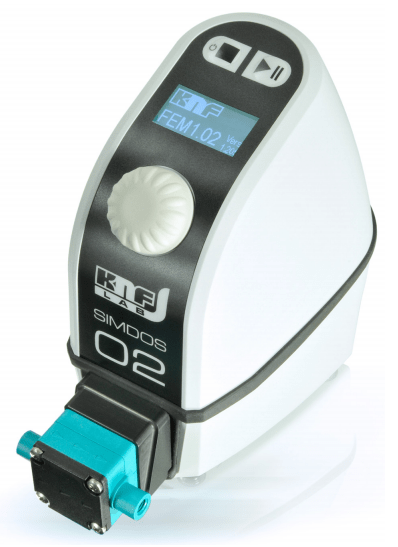

KNF SIMDOS® 02 (External Control)

Price Each

Quantity

Price:

$ 1,882.90

 $ 2,081.10 		Quantity:
Add to Cart

KNF SIMDOS® 02 (External Control)



The SIMDOS series pumps are the ideal solution for accurate, reliable and stable dosing applications. They are small, quiet, dry-running, self-priming and maintenance-free. Additionally, the SIMDOS series of metering/dosing pumps can be combined with a number of specialized accessories for optimal performance.



KNF laboratory liquid dosing pumps feature a unique modular design. As a result, the SIMDOS 02 and its companion, the SIMDOS® 10, can be fitted with a variety of head materials - each designated to meet specific operational requirements. Available head materials include: PTFE, PP, PVDF or Stainless Steel.

**Choose Your Pump Model (Head Material):

  • FEM1.02KT.18RC – PP (Polypropylene)

  • FEM1.02TT.18RC – PVDF (Polyvinylidene Fluoride)

  • FEM1.02FT.18RC – PTFE (Polytetrafluoroethylene)

  • FEM1.02ST.18RC – SEAINLESS STEEL

**Each Material has varying degrees of chemical resistance, some materials may not be appropriate for specific applications. Please consult a Chemtech Scientific Technician for application and product support.

The SIMDOS 02 is safe to run dry and is self-priming up to 6.6 ft. water. It is effective against pressures of up to 85 psig, and transfers viscous media up to 500 centistokes. The integrated software permits the transfer parameters to be modified for a range of different viscosities at the touch of a button. Thanks to its neat design and small footprint, the new SIMDOS 02 dosing pump takes up very little valuable laboratory space.





  • 0.03-999 mL dosing volumes

  • 0.03-20 mL/min flow rate

  • Simple, intuitive operation

  • Quick and easy calibration

  • Cycle mode

  • Adjustable transfer parameters

  • Adaptive to fluid characteristics

  • Self-priming up to 6.6 ft. water

  • Dry run capable

  • Various control options

  • Splash-proof IP65 housing

  • Small footprint





  • Specifications

  • Flow Rate

  • 30 µl/min–20 ml/min

  • Dosing volume

  • 30 µl–999 ml

  • Maximum Pressure Head

  • 85 psig

  • Suction height

  • 6.6 ft. water



Other Technical Information:



• Main supply 100–240 V / 50–60 Hz

• Power consumption 10 W

• Ambient temperature allowed +5 to +40 °C

• Protection class IP65

• Liquid temperature allowed +5 to +80 °C

• Dimensions: 150 H x 93 W x 144 D mm

• Viscosity settings up to 500 cSt

• Weight: 0.9 kg

• Accuracy +/-2% (nominal value)

• UNF 1/4"-28 threaded ports

• Repeat-ability +/-1%

• Supplied with 1/8" OD x 1/16" ID tubing; other options available



External Control Functions Include:



  • Manual operation

  • Analog control: 0–5 V, 0–10 V, 0–20 mA, 4–20 mA, from 1 to 100%

  • Start/Stop through logic control (TTL)

  • Reset/Prime through logic control (TTL)

  • Output signal fault alarm • RC cable for external control included

KNF SIMDOS® 02 (External Control)



The SIMDOS series pumps are the ideal solution for accurate, reliable and stable dosing applications. They are small, quiet, dry-running, self-priming and maintenance-free. Additionally, the SIMDOS series of metering/dosing pumps can be combined with a number of specialized accessories for optimal performance.



KNF laboratory liquid dosing pumps feature a unique modular design. As a result, the SIMDOS 02 and its companion, the SIMDOS® 10, can be fitted with a variety of head materials - each designated to meet specific operational requirements. Available head materials include: PTFE, PP, PVDF or Stainless Steel.

**Choose Your Pump Model (Head Material):

  • FEM1.02KT.18RC – PP (Polypropylene)

  • FEM1.02TT.18RC – PVDF (Polyvinylidene Fluoride)

  • FEM1.02FT.18RC – PTFE (Polytetrafluoroethylene)

  • FEM1.02ST.18RC – SEAINLESS STEEL

**Each Material has varying degrees of chemical resistance, some materials may not be appropriate for specific applications. Please consult a Chemtech Scientific Technician for application and product support.

The SIMDOS 02 is safe to run dry and is self-priming up to 6.6 ft. water. It is effective against pressures of up to 85 psig, and transfers viscous media up to 500 centistokes. The integrated software permits the transfer parameters to be modified for a range of different viscosities at the touch of a button. Thanks to its neat design and small footprint, the new SIMDOS 02 dosing pump takes up very little valuable laboratory space.





  • 0.03-999 mL dosing volumes

  • 0.03-20 mL/min flow rate

  • Simple, intuitive operation

  • Quick and easy calibration

  • Cycle mode

  • Adjustable transfer parameters

  • Adaptive to fluid characteristics

  • Self-priming up to 6.6 ft. water

  • Dry run capable

  • Various control options

  • Splash-proof IP65 housing

  • Small footprint





  • Specifications

  • Flow Rate

  • 30 µl/min–20 ml/min

  • Dosing volume

  • 30 µl–999 ml

  • Maximum Pressure Head

  • 85 psig

  • Suction height

  • 6.6 ft. water



Other Technical Information:



• Main supply 100–240 V / 50–60 Hz

• Power consumption 10 W

• Ambient temperature allowed +5 to +40 °C

• Protection class IP65

• Liquid temperature allowed +5 to +80 °C

• Dimensions: 150 H x 93 W x 144 D mm

• Viscosity settings up to 500 cSt

• Weight: 0.9 kg

• Accuracy +/-2% (nominal value)

• UNF 1/4"-28 threaded ports

• Repeat-ability +/-1%

• Supplied with 1/8" OD x 1/16" ID tubing; other options available



External Control Functions Include:



  • Manual operation

  • Analog control: 0–5 V, 0–10 V, 0–20 mA, 4–20 mA, from 1 to 100%

  • Start/Stop through logic control (TTL)

  • Reset/Prime through logic control (TTL)

  • Output signal fault alarm • RC cable for external control included
