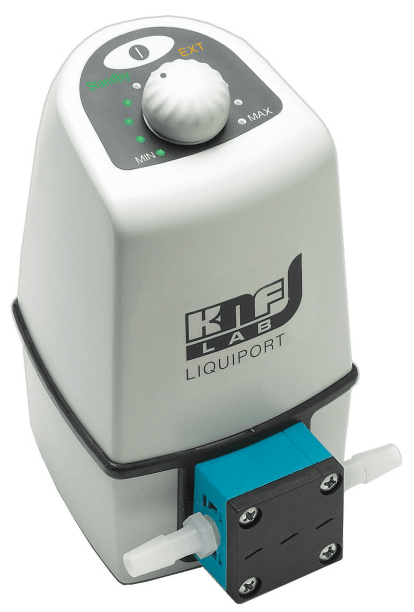

KNF LIQUIPORT NF100 Series (External Control)

KNF LIQUIPORT NF100 Series (External Control)

KNF LIQUIPORT pumps will operate dry and indefinitely without damage. These diaphragm liquid pumps are based on reciprocating displacement pump technology. An elastic diaphragm is moved up and down by the eccentric and connecting rod. During the down stroke, the diaphragm sucks in the medium through the inlet valve. During the up stroke, it forces medium out of the pump head through the exhaust valve. The diaphragm hermetically seals off the working chamber from the pump drive, eliminating corrosives from contaminating the inner mechanical parts.

Models are available featuring premium, corrosion-resistant PVDF and PTFE resins. PTFE, FFPM, PVDF, etc. enables the pumps to convey virtually any type of liquid.

**Choose Your Model (Chemical Resistance):

• NF100KT.18RC – High Chemical Resistance with Polypropylene/PTFE/FFPM Materials

• NF100TT.18RC – Excellent Chemical Resistance with PVDF/PTFE/FFPM Materials

• NF100FT.18RC – Premium Chemical Resistance with PTFE/PTFE/FFPM Materials

Flow Range Up to 3 Lit/min

Self-priming Up to 10 Ft water

Reliable Splash-proof Housing

External Logic Control

Runs Dry Without Damage

Maintenance-free Design

Models to 90 psig Head Pressure

Specifications
Flow Range	0.2 – 1.3 Lit/Min
Maximum Suction	10 Ft H2O
Maximum Pressure Head	15 psig
