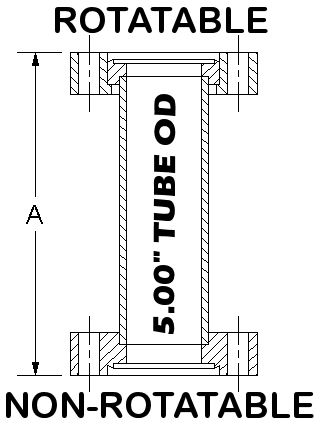

6.75" OD Conflat Flange Full Nipple, 8.46" OAL 675-500-N
675-500-N
6.75" OD Conflat Full Nipple
8.46" Overall Length
DN125CF Series
• 304 Stainless
• 11 lbs.
Unpolished, No Cancel, No Return Item
6.75" OD Conflat Flange (CF):
• UHV Ultra High Vacuum Fitting
• Non-Rotatable & Rotatable Flanges
• 5" Tube OD
• 18 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter
6-3/4" OD Conflat Flange (CF) Equivalents:
• CF675, DN125CF, NW130CF, 675CF
