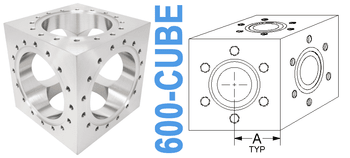

6.00" OD Conflat Cube (600-CUBE)
600-CUBE
DN100CF 6 WAY CONFLAT UHV CUBE
6.00" OD CF Conflat Flange Series
• Weight: 23.5 lbs
• A: 2.98"
• Porting is 4"
• Former PN: 600-CU
6-Way Cube for Ultra High Vacuum
UHV Applications
6" OD Conflat Flange (CF):
• 16 Tapped Holes
• 5/16-24 Thread
• Uses 600-BT OR 600-BT-12 Tapped Bolt Kit
6" OD Conflat (600CFF) Equivalents
CF100, CF600, DN100CF, NW100CF, 600CF Del Seal
CF Conflat Flange Series Cubes
Six Way UHV Cubes
• One Piece Machined, No Welds
• Tapped Holes, US Threads
• 304L Stainless, OD Polish
UHV, Vacuum Rated:
• 1x10-13 Torr
Helium Leak Tested To:
• <1x10-9 cc/second
Temperature Range:
• -200°C up to 450°C
