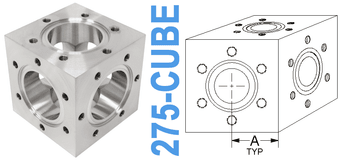

2.75" OD Conflat Cube (275-CUBE)
275-CUBE
6 WAY CONFLAT UHV CUBE
2-3/4" OD CF Conflat Flange Series
• A: 1.38"
• Porting is 1.50"
• Former PN: 275-CU
6-Way Cube for Ultra High Vacuum
UHV Applications
2.75" OD Conflat Flange (CF) Series
• 6 Tapped Bolt Holes
• 1/4-28 Thread
• Uses 275-BT Tapped Bolt Kit
2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF, Del Seal
CF Conflat Flange Series Cubes
Six Way UHV Cube
• One Piece Machined, No Welds
• Tapped Holes, US Threads
• 304L Stainless, OD Polish
UHV, Vacuum Rated:
• 1x10-13 Torr
Helium Leak Tested To:
• <1x10-9 cc/second
Temperature Range:
• -200°C up to 450°C
