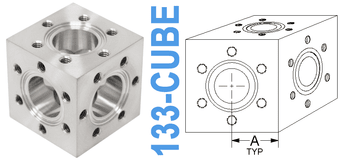

1.33" OD Conflat Cube (133-CUBE)
133-CUBE
1.33" OD Six Way Conflat UHV Cube
1-1/3" OD CF Conflat Flange Series
• 6 Tapped Bolt Holes (8-32 Thread)
• A: 0.67"
• Porting is 0.75"
• ID: 0.62" Nominal
• Former PN: 133-CU
6-Way Cube for Ultra High Vacuum
UHV Applications
1.33" OD Conflat Flange (CF) Series
• 6 Tapped Bolt Holes (8-32 Thread)
• Uses 133-BT Tapped Bolt Kit
1.33" OD CF Conflat Flange Equivalents
• CF133, DN16CF, NW16CF, CF16, 133CF,
1-1/3" Mini Conflat, CFF, Del Seal
CF Conflat Flange Series Cubes
Six Way UHV Cubes
• One Piece Machined, No Welds
• Tapped Holes, US Threads
• 304L Stainless, OD Polish
UHV, Vacuum Rated:
• 1x10-13 Torr
Helium Leak Tested To:
• <1x10-9 cc/second
Temperature Range:
• -200°C up to 450°C
