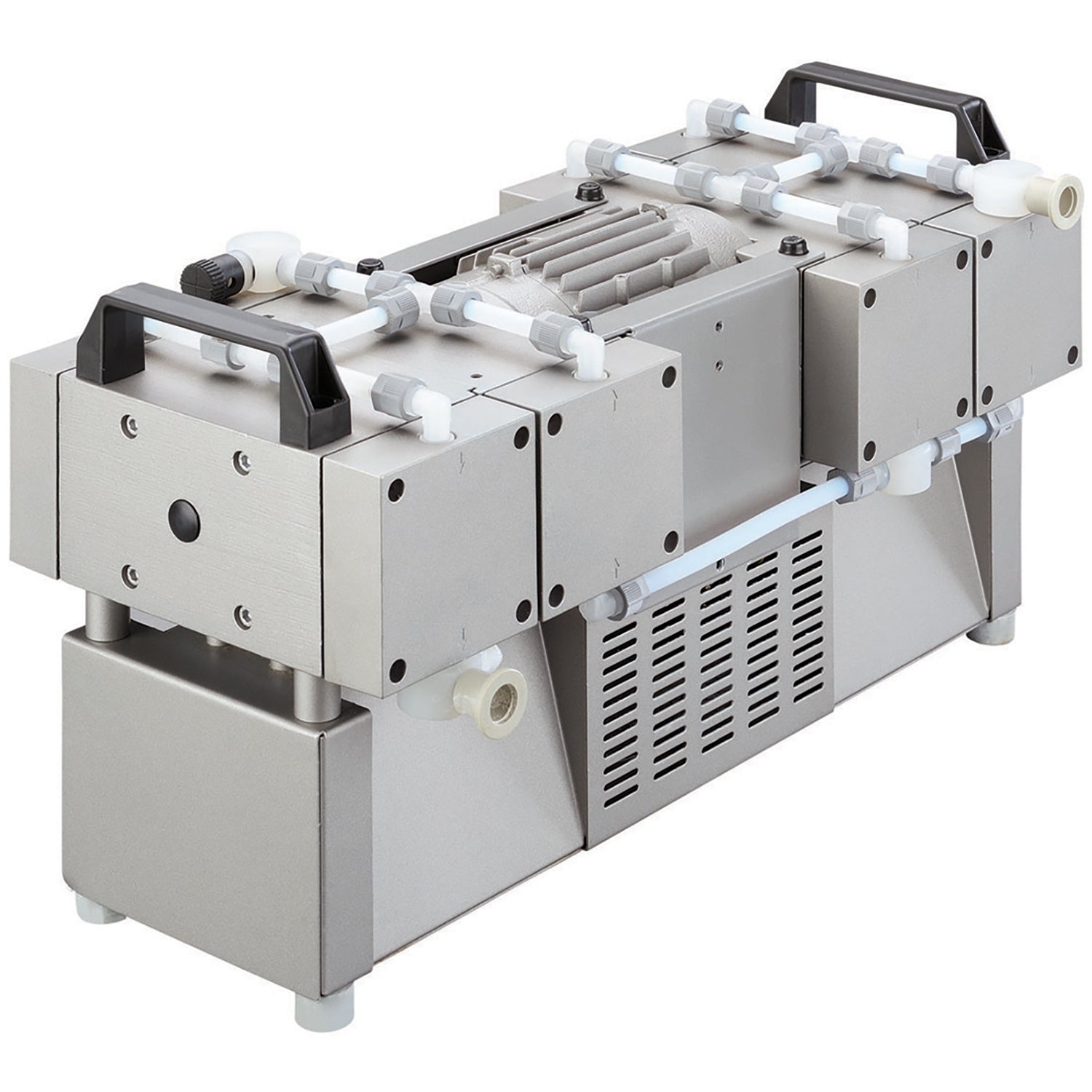

Welch-Ilmvac 2067B-01 Oil-Free PTFE High Flow Vacuum Pump
| Welch 2067 Owner's Manual | |
|
The Welch-Ilmvac 2067B-01 is a powerful, dry, chemical duty vacuum pump. The very high flow of 221 lit/min, along with the ultimate vacuum of 56 Torr, makes this quiet diaphragm pump the perfect networked vacuum pump. The 2067 can power a lab of over 20 nozzles, depending on piping runs. The Ilmvac chemical duty pumps can be used for any harsh chemical service. The Ilmvac PTFE pumps are designed for quick and easy, infrequent maintenance. The Ilmvac PTFE pumps are light weight and quiet diaphragm membrane vacuum pumps providing excellent performance for rotary evaporators, vacuum ovens, degassing, mixing and networked vacuum projects.
|
|
| What's included | 1/4" OD hose barb |
| Common accessory, not included | Vacuum Controller |
| Pumping Speed | 221 Lit/min. (7.8 CFM) |
| Max. Vacuum | 56 Torr (75 mbar) 29.7" Hg |
| Tubing Needed | 1/4" ID |
| Inlet Connection | UNIBARB |
| Exhaust | 1/4" OD |
| Dimensions LxWxH inches | 21x11x12 |
| Weight | 72 LBS |
| Wiring | 115V, 60 hz |
| Welch 2067 Owner's Manual | |
|
The Welch-Ilmvac 2067B-01 is a powerful, dry, chemical duty vacuum pump. The very high flow of 221 lit/min, along with the ultimate vacuum of 56 Torr, makes this quiet diaphragm pump the perfect networked vacuum pump. The 2067 can power a lab of over 20 nozzles, depending on piping runs. The Ilmvac chemical duty pumps can be used for any harsh chemical service. The Ilmvac PTFE pumps are designed for quick and easy, infrequent maintenance. The Ilmvac PTFE pumps are light weight and quiet diaphragm membrane vacuum pumps providing excellent performance for rotary evaporators, vacuum ovens, degassing, mixing and networked vacuum projects.
|
|
| What's included | 1/4" OD hose barb |
| Common accessory, not included | Vacuum Controller |
| Pumping Speed | 221 Lit/min. (7.8 CFM) |
| Max. Vacuum | 56 Torr (75 mbar) 29.7" Hg |
| Tubing Needed | 1/4" ID |
| Inlet Connection | UNIBARB |
| Exhaust | 1/4" OD |
| Dimensions LxWxH inches | 21x11x12 |
| Weight | 72 LBS |
| Wiring | 115V, 60 hz |
