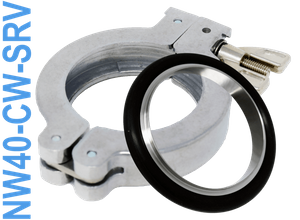

NW40 Clamp & Ring Assembly (NW40-CW-SRV)

NW40-CW-SRV
NW40 Centering Ring and Wing Clamp Assembly
• Fits NW40, KF40 & QF40 Series Flanges & Fittings
• NW40 (KF40) High Vacuum Hardware
• Images Shown May Be For Reference Only
NW40 Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
NW40-CW-SR-V NW40-SRV-CW Klamp
NW40-CW-SRV Includes:
NW40 Aluminum Wing Clamp (NW40-150-CW)
NW40 Stainless/Viton Centering Ring (NW40-150-SR-V)
